SOUND
The most important element of any instrument is the sound. MODX7+ makes all elements of your music sound amazing. MODX7+ uses the same technology that powers the flagship MONTAGE: 128 notes of AWM2 (Advanced Wave Memory 2) sample and synthesis polyphony for stunning emulative acoustic instruments, synth sounds and drums. MODX+ also features 128 notes of FM-X (Frequency Modulation) polyphony - a unique, expressive, highly-programmable synthesis technology for dynamic, electro-modern music creation.
CONTROL
Every artist wants to find their own sound. Motion Control is designed to bring the sophisticated automation of music production to real-time live performances. All to help you create inspired music that stands out on every stage, studio or stream.
MOBILITY

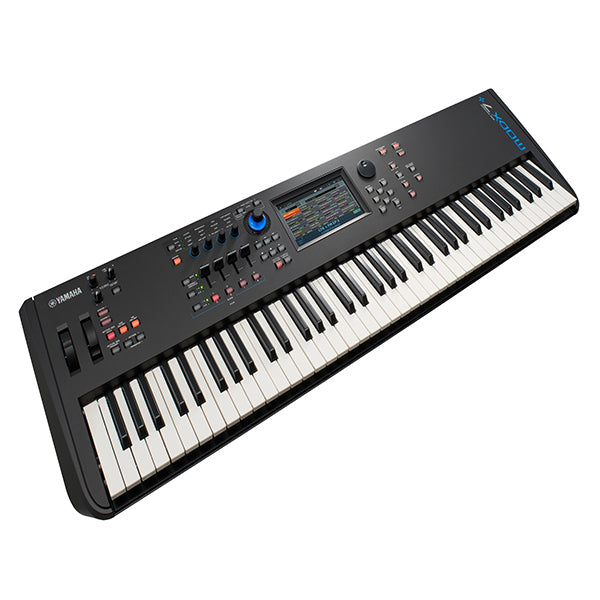

Designed for musicians on the go, MODX7+ is compact, lightweight and mobile.
SPECIFICATIONS
Number of Keys : 76
Type : Semi-weighted Keyboard
Initial Touch : Yes
Aftertouch : No
Tone Generator : Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
Maximum Polyphony : AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)
Multi Timbral Capacity : 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
Wave : Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
Performance : 2,227
Filter : 18 types
Effects: Reverb x 12 types, Variation x 88 types, Insertion (A, B) x 88 types*2, Master Effect x 26 types *2 A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
Controllers : Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial
Display : 7" TFT Color Wide VGA LCD touch screen
Connectors : [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
Power Consumption : 16 W (when using PA-150B AC adaptor)
Accessories : AC adaptor (PA-150B or an equivalent recommended by Yamaha*), Owner’s Manual, Cubase AI Download Information *May not be included depending on your area. Check with your Yamaha dealer.
Live Sets : Preset: 256 and more, User: 2,048
Storage Size : Approx. 520,000 notes (for Patterns) and approx. 520,000 notes (for Songs)
Tempo (BPM) : 5 – 300
Songs : 128 songs
Tracks : 16 Sequence tracks
Recording type : Real time replace, Real time overdub, Real time punch in/out
