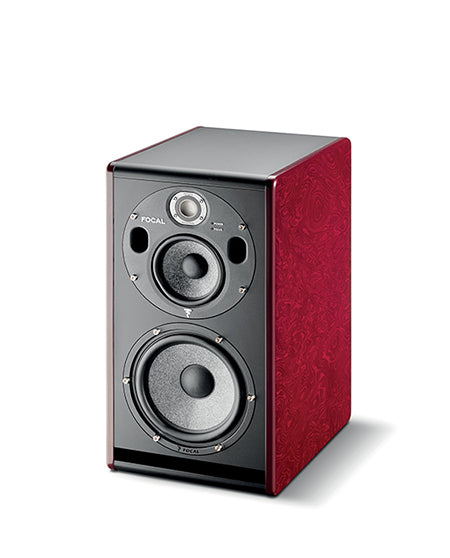

Focal Trio 6 Be 2 Way Powered Monitors Speaker Overview: Essentially, the Trio6 Be is a three-way speaker with a 1” tweeter, a 5” woofer, and an 8” subwoofer. Yet, switching to FOCUS mode reconfigures Trio6 Be in two-way monitor. The Trio6 Be was designed to meet the standards of the most demanding engineers. This dual monitor is the new reference in its price range owing to its extreme neutrality, its precise stereophonic imaging, and its ability to resolve the most minute sonic details, while its Class G amplifiers deliver SPL levels to suit all musical styles.
Features:
- Two monitors in one with remote switching: a quick and effective way to compare the mix translated to a compromised speaker system ?
- Beryllium inverted dome tweeter: state-of-the-art speaker design and material producing wide uncompromised dynamics, linearity, and wide dispersion ?
- W composite sandwich cone: state-of-the-art speaker material producing a neutral, distortion-free sound ?
- Rotating baffle: facilitates both horizontal and vertical setups ?
- LF and HF shelving, 160Hz EQ: simplifies room integration ?
- 115dB peak @ 1m: high SPL accommodates all musical styles ?
- Remote pedal (not supplied) switching for FOCUS mode (two-way or three-way configuration) ?
- Three control knobs for adjusting low and high frequencies and 160Hz notch
Specifications: Frequency response:
- 3-way mode 35Hz - 40kHz (+/- 3dB)
- 2-way mode (Focus) 90Hz - 20kHz (+/- 3dB)
- Maximum SPL
- 3-way mode 115dB SPL (peak at 1m)
- 2-way mode (Focus) 105dB SPL (peak at 1m)
Electronics Inputs
- Type /Impedance: Electronically balanced / 10KOhms
- Connectors: XLR
- Sensitivity: Adjustable, +4dBu ou -10dBv
Bass: 200W, class G Midrange: 150W, class G Treble: 100W, class AB
Power supply
- Main voltage: 230V (class T fuse 1.6A fuse rating) - 115V (class T fuse 3.5 A fuse rating)
- Wiring: Detachable IEC power cable
Indicators and controls
- Rear panel: Input sensitivity selector (+4dBu/-10dBV)
- Low frequency shelving (+/- 3dB from 35 to 250Hz)
- High frequency shelving (+/- 3dB from 4.5 to 40kHz)
- EQ low-mid frequencies (+/- 3dB at 160Hz, Q factor = 1)
- FOCUS input / FOCUS output
- LED: Focus mode on, audio clipping and protection indicated by LED on front panel
Transducers Subwoofer:
- 8W64701
- 8" Focal driver with W composite sandwich cone
Woofer:
- 5W04701
- 5" Focal driver with W composite sandwich cone
Tweeter:
- TB872,
- 1" Focal pure Beryllium inverted dome tweeter
Cabinet
- Structure: 22mm (0.86") reinforced panels
- Finish: Dark Red natural Burr-ash veneering side panels, Black body
- Dimensions including 4 rubber feet (HxWxD): 201/2" x 1015/16" x 143/16" (520 x 278 x 360mm)
- Weight: 44 lbs (20 kg)
