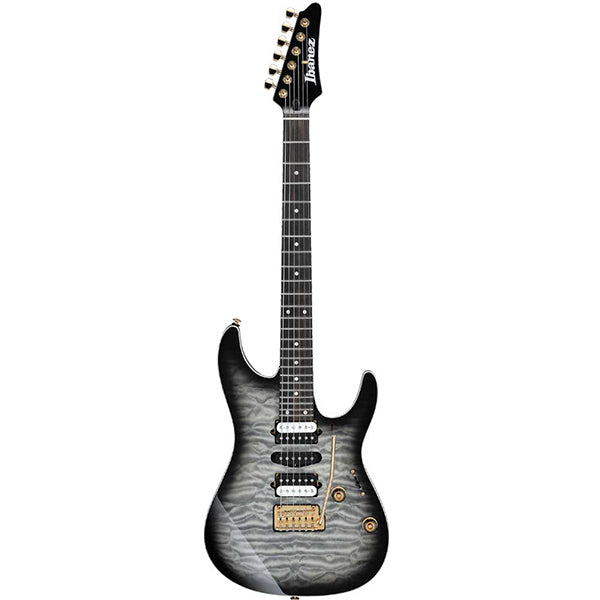

Ibanez AZ47P1QM Electric Guitar

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted Maple neck
Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Gotoh® T1502 tremolo bridge
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

SPECIFICATION

• neck type: AZ Oval CRoasted Maple neck
• top/back/body: Quilted Maple topAmerican Basswood body
• fretboard: Ebony fretboardMother of Pearl dot inlay
• fret: Jumbo Stainless Steel frets
• number of frets: 24
• bridge: Gotoh® T1502 bridge
• string space: 10.5mm
• neck pickup: DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
• middle pickup: DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
• bridge pickup: DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
• factory tuning: 1E,2B,3G,4D,5A,6E
• strings: D'Addario® EXL110
• string gauge: .010/.013/.017/.026/.036/.046
• nut: Graph Tech® nut

FEATURES

• Recommended Case MR500C

• Gig bag included

• Gotoh® MG-T locking machine heads

• Luminescent side dot inlay
