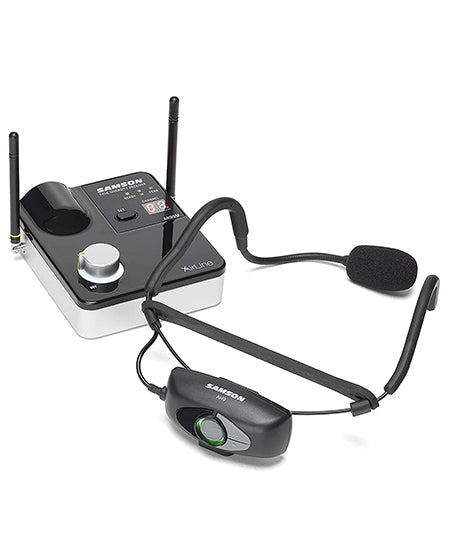

Samson Airline 99m Fitness Headset System

The Samson AirLine 99m AH9 Fitness Headset system is a unique wireless microphone solution designed to meet the specific demands of fitness instructors and other active performers. Along with a water/sweat-resistant Qe headset microphone, this frequency-agile UHF wireless system combines the AH9 micro transmitter and AR99m micro receiver for a highly-portable, rechargeable setup that offers high-definition sound completely free of cables and beltpacks.   AirLine 99m AH9 Fitness Headset Wireless System

• Frequency-agile UHF wireless system
• 100 operating channels across 24MHz bandwidth
• Up to 8 simultaneous systems per frequency band (region dependent)

  AH9 Wireless Micro Transmitter

• Micro transmitter mounted directly to a double ear headset (no beltpack or cable required)
• Water/sweat-resistant Qe headset microphone with condenser capsule
• Up to eight hours of battery life using built-in rechargeable lithium-ion battery
• Sealed gold contact charging connector
• Low battery LED indicator
• 300' operating range (line-of-sight)
• Variable Gain control
• One-touch Mute
• Windscreen included

  AR99m Wireless Micro Receiver

• True RF Diversity micro receiver design minimizes dropouts
• Set button scans/selects optimal channel options
• IR sync wirelessly matches transmitter to receiver frequency
• Tone key prevents unwanted noise when transmitter is off or out of range
• Channel and Ready/IR/Peak LED displays
• Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
• USB port for adding a Samson XPD Series wireless system or AH9 transmitter
• Rotary volume knob with integral power switch
• 1/4-wave antennas

  Specifications AirLine 99m AH9 Fitness Headset Wireless System

• Working Range: 300' (100m)
• Audio Frequency Response: 50Hz–15kHz
• H.D. (Overall): <1% @ AF 1kHz, RF 46dBu
• Operating Temperature: -10? to +60?
• Tone Key Frequency: 35kHz

  AR99m Wireless Micro Receiver   Audio Output Level

• From ?3.5 & ?6.3 Jack (unbalanced): +14dBu
• From XLR Jack (balanced): +9dBu

  Audio Output Impedance

• From ?3.5 & ?6.3 Jack (unbalanced): 1.1K?
• From XLR output jack (balanced): 240?
• Sensitivity: 100dBm/30dB SINAD
• Image Rejection: >50dB
• Operating Voltage: 15VCC 600mA
• Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
• Product Weight: 0.42lb (0.19kg)
