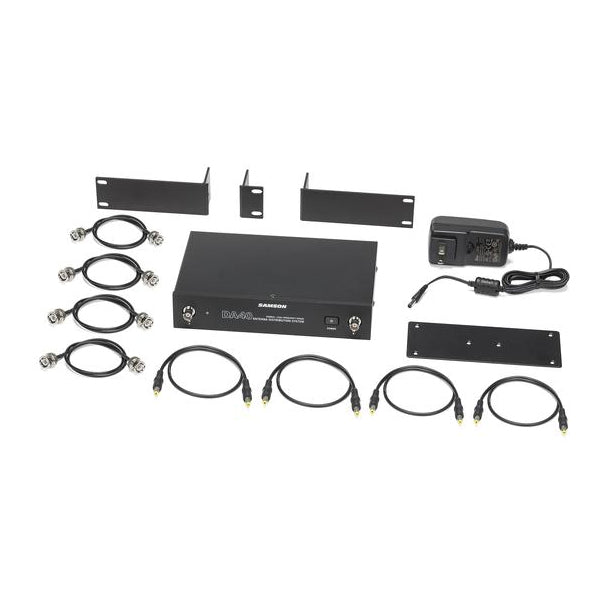

Samson DA40 Antenna Distribution System

Half-rack, wideband UHF antenna distribution system
Recommended for use with Samson Concert 99 and Synth 7 wireless systems, and PA1 Active Unidirectional Antennas (all sold separately)
Handles up to four wireless receivers simultaneously
Four DC power outputs for powering receivers (four cables included)
Front and rear panel BNC antenna connectors (four cables included)
DC outputs for antenna bias
Rackmount hardware and power supply included

Specifications

• Frequency Range: 400MHz–1GHz (-3dB)
• Gain (input to any output power): 0±1dB
• IP3 Output Intercept Point: 50dBm (min), 20dBm (typical)
• Impedance: 50Ω
• Working Voltage: 15V DC, 2000mA
• Current Consumption: 200mA
• Power to Antenna: 12V, 500mA
• Product Dimensions: 1.75" x 8.5" x 6" (42mm x 215mm x 150mm)
• Product Weight: 2.25lb (1kg)
