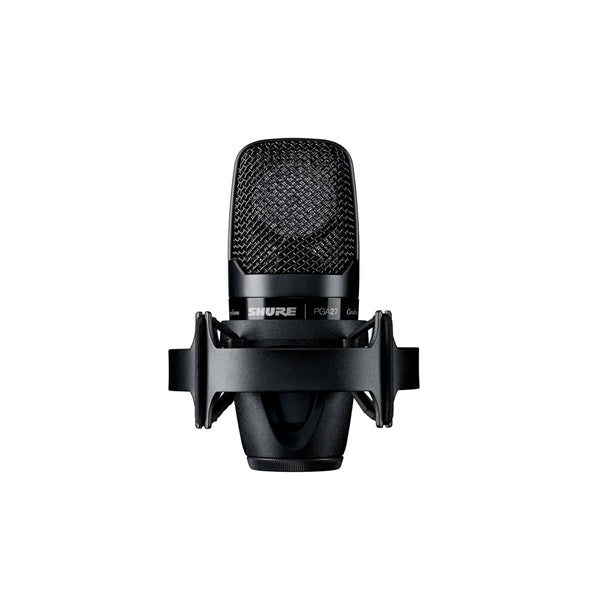

Shure PGA27LC Large Diaphragm Side-Address Cardioid Condenser Microphone Overview:
The PGA27 is designed for clear capture of vocal, acoustic and amplified sources in recording applications as well as live sound.
The PGA27 is a professional quality instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.
Additional features include a high-pass filter for extra control of unwanted low-end signal and a -15dB switchable attenuator for additional SPL versatility.
Features:
- Large diaphragm cartridge provides wider dynamic range for clear highs and strong lows
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Updated industrial design with black metallic finish and grille for unobtrusive visual presence
- High-pass filter for additional control of unwanted low-end signal
- -15dB switchable attenuator for additional SPL versatility
- Shock mount included for additional set-up stability and minimization of unwanted mechanical noise
- Padded zipper case included for additional protection during storage or transport
- Legendary Shure quality design and construction for exceptional performance in rigorous environments
Specifications:
- Frequency Response: 20–20,000 Hz
- Phantom power required: Yes
- Polar Pattern: Cardioid
- Type: Electret condenser
- Output Impedance: 115 ?
- Sensitivity at 1 kHz, open circuit voltage: -35 dBV/Pa (17.8 mV), 1 Pa=94 dB SPL
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Weight: 453 g (16 oz.)
- Connector: Three-pin professional audio (XLR), male
- Operating Temperature: -20 to 165 °F (-29 to 74 °C)
- Operating Humidity Relative: 0 to 95%
