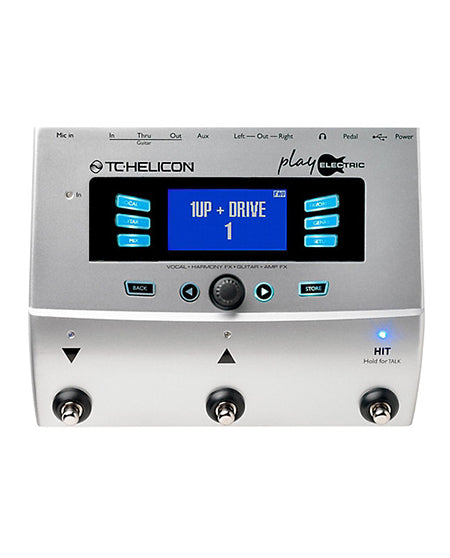

TC Helicon, Voice Processor, Play Electric
A compact wonder of complete vocal and guitar processing, Play Electric allows you to rock out with confidence! The hottest vocal sounds, including perfect backing harmonies, combined with best-selling TC Electronic guitar FX and enough amp emulations to quench anyone’s thirst for tone, make Play Electric the new standard for singing guitarists everywhere.
Features:
Vocal Effects
- Global Adaptive Tone
- Global Pitch Correction
- Harmony
- Double
- Delay (w/Filter styles)
- Reverb
- HardTune (Pop, Correct, Robot, Gender Bender)
- Transducer (Megaphone, Radio, Distortion)
- µMod (Detune, Chorus, Flange, Rotor, Tube, Character)
Guitar Effects
- Amp Modeling (incl. acoustic/no amp)
- Delay
- Reverb
- Chorus
- Flanger
- Tremolo
- Overdrive & Distortion
- Compression
- Detune
- Rotor
- Panner
- Auto Filter
Control
- 170+ Song & Artist Inspired Presets, Memory for 500
- Simple Vocal & Guitar FX Editing via Direct Access Buttons
- Direct Access to Favorite, Genre, Mix and Setup Menus
- Preset Up/Down and HIT Footswitch
- Graphics LCD Display
- Bump-Protected Mic Level
- Dual-Colour Backlit Buttons
Design:
Size
- Height: 1.8 inches (45 mm)
- Width: 7.9 inches (200 mm)
- Depth: 6.1 inches (156 mm)
Weight
Construction
- Dual die-cast clamshell design
- Acrylic Lens
- Punch-cut Metal connection panel
- Rubberized footings
- Backlit Graphic LCD Display
Connections
Analog Inputs
VOICE
- Connector: Balanced XLR
- Input Impedance Balanced: 3 kOhm
- Mic Input Level @ 0 dBFS: -39 dBu to +14 dBu
- EIN @ Max Mic Gain Rg = 150 Ohm: -127 dBu
- Mic SNR >100 dB at typical mic input gain
- Phantom Power: +48V (on/off via setup menu)
- A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted
GUITAR
- Connector: 1/4? phone jack
- Guitar Input Impedance: 1 MOhm
- Guitar Input Level @ 0 dBFS: +13 dBu
- Guitar Input SNR >108 dB
- A to D Conversion 24 Bit, 128 x oversampling bitstream, 115 dB SNR A-weighted
AUX
- Aux: 1/8? stereo mini jack
- Aux Input Level @ 0 dBFS +2.5 dBu
Analog Outputs
VOICE
- Connectors: balanced XLR
- Output Impedance Balanced/Unbalanced: 260/130 Ohm
- Output Range 0 dBFS: -6 dBu
- Dynamic Range >108 dB, 20 Hz to 20 kHz
- Frequency Response +.3/-0 dB, 20 Hz to 20 kHz
- D to A Conversion 24 Bit, 128 x oversampling bitstream, 115 dB SNR A-weighted
GUITAR
- Connectors: 1/4? TRS
- Output Impedance Balanced/Unbalanced: 300/150 Ohm
- Output Level at 0 dBFS: +6 dBu
- Dynamic Range >105 dB, 20 Hz to 20 kHz
- D to A Conversion 24 Bit, 128 x oversampling bitstream, 108 dB SNR A-weighted
HEADPHONE
- 1/8? Mini stereo jack, 50 Ohm, +12 dBu max
GUITAR THRU
- Buffered Guitar Input
- Connector: 1/4? TRS
- Output Impedance Bal/UnBal: 540/270 Ohms
