Sound like a pro!

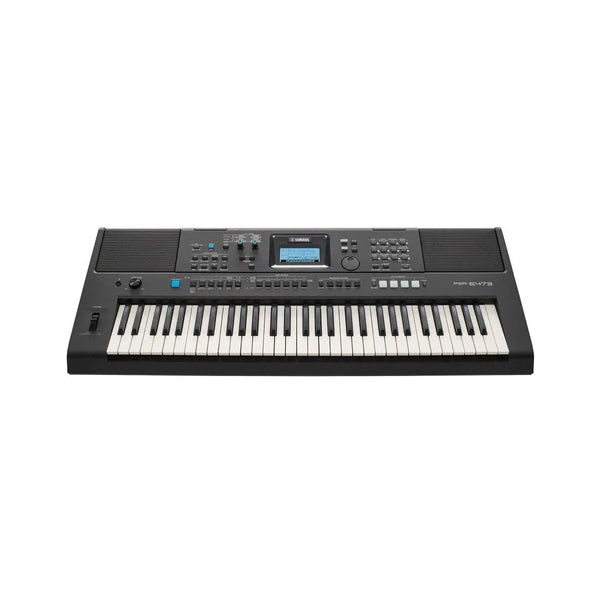

The PSR-E473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.
Express yourself
Yamaha revamped the control panel and LCD, phased out the numeric keypad, and added Direct Category Access buttons.
The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative.
With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you're hearing in your head.
Connect and share
A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec'n'Share app to share your music with the world, and hook into PA systems to perform on stage.
SPECIFICATIONS
Keyboard
Number of Keys : 61
Touch Response : Yes (Soft, Medium, Hard, Fixed)
Type : Organ-style
Other Controllers
Pitch Bend : Yes
Art. Switches : Yes
Control Knobs : 2
Display
Type : LCD
Backlight : Yes
Language : English
Tone Generating Technology : AWM Stereo Sampling
Number of Polyphony (Max.) : 64
Number of Voices : 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
Featured Voices : 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
Compatibility
GM : Yes
XGlite : Yes
Effects
Types
DSP : DSP1: 41 types, DSP2: 12 types
Reverb : 12 types
Chorus : 5 types
Master EQ : 4 types
Functions
Dual/Layers : Yes
Split : Yes
Melody Suppressor : Yes (w/ pan adjustment)
Crossfade : Yes (between Internal Sound and External Audio)
Accompaniment Styles
Number of Preset Styles : 290
Fingering : Multi finger, Smart Chord
Style Control : ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
One Touch Setting (OTS) : Yes
Expansion Style :10
Compatibility
Number of Groove : Number of Groove
Number of Sections : 5 (4 Sections + 1 Musical Climax/Ending)
Songs
Number of Preset Songs : Number of Preset Songs
Recording
Number of Songs : 10
Number of Tracks : 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity : Approx. 19,000 notes (when only “melody” tracks are recorded)
USB audio interface
Number of Buttons : 4 (x 8 banks)
Control : Freeze
Storage
Internal Memory : Approx. 1.72 MB
External Drives : USB flash drive
Amplifiers and Speakers
Amplifiers : 6 W + 6 W
Speakers : 12 cm x 2
Power Supply
AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
